Ballantine Pilot Bit Overview
Definition: Component that attaches to the sonde housing and creates a pilot bore
Function:
- Cuts Ground
- Steers Drill Head
- Mixes the Drilling Fluids During Pilot Bore
- Pulls Back Service Materials
Composition and manufacture:
- Ballantine pilot bits are made from a premium abrasion resistant steel alloy.
- Unibody (one-piece) design for all boring bits assures maximum strength.

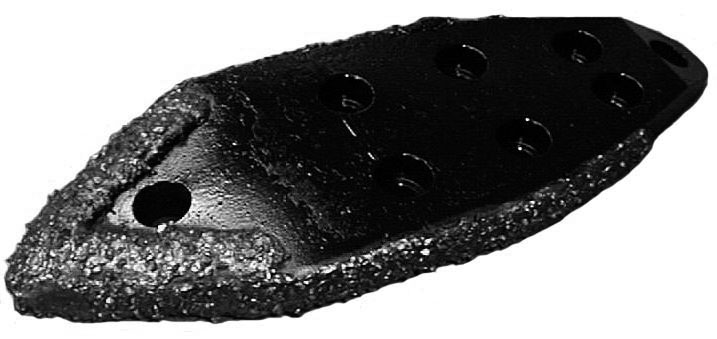

- A carbide matrix of Terminator®Hardfacingis applied to high wear points by a state of the art welding robot for consistency.
- Indexed pockets securely attach brazed-in carbide for extended life.
- A three-stage heat treat process after hardfacingensures durability.
Pilot Bit for Ground Conditions
-

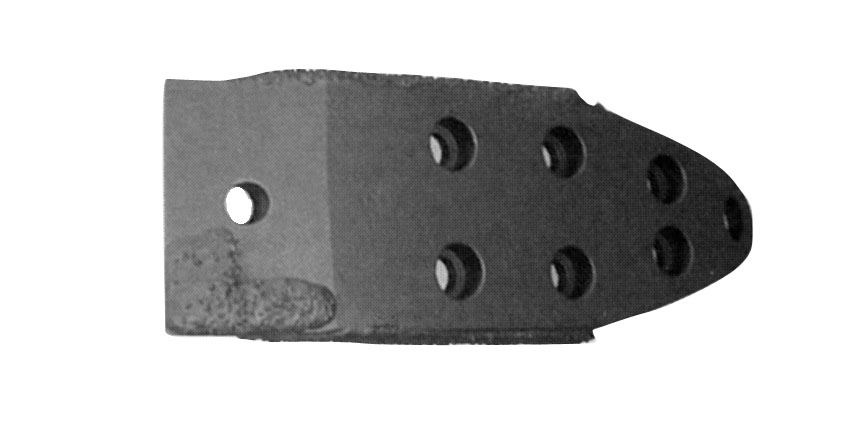

Lose soil: Squared Off Or Blunt End
-

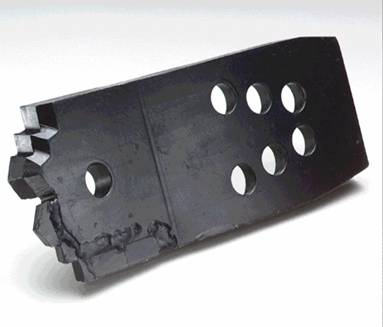

Hard/Dry soil: Sharper Cutting Edge, Inlaid Carbide
-
Cobble/Lose Rock:Tapered Bit For Penetration
-

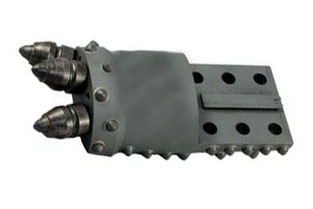

Rock: Carbide Inserts
Ditch Witch® :
- 10 Degree Bend
- Bolt Hole Patterns: 3, 4, 5, 6, & 7
Currently Used Bolt Patterns
•3 Hole – JT520•5 Hole – JT920/L, 921, 1220M1•6 Hole- JT2020M1, JT1720, 2720
Vermeer® :
- 10 Degree Bend
- 7 Bolt Pattern Used on All Heads
- Size of Drill And Length of Bit
- Small Rigs 10 ½”
- Medium Rigs 11 5/8”
- Large Rigs over 12”
